4 Litter / hour

40 litter / hour

approximately 2,5 μS/cm

Automatic power cut-off, in case of low water, to protect the heating elementAutomatic start when the water at sufficient level in the evaporator tankAutomatic thermostatic cut-off

Solenoid valve built-in connection for evaporator and condenserAutomatic solenoid valve switching on in case of low water level on evaporator tankAutomatic solenoid valve switching off in case of high water level on evaporator tank

Evaporator tank made of stainless steel material no. EN 1.4301Condenser (cooler) made of stainless steel, material no. EN 1.4301Heating element made of stainless steel, material no. EN 1.4876

Housing material made of galvanized steel, electrostatically powder coated

Degassing system through a vent in the top of the unit

Easily accessed evaporator for cleaning and maintenance

All parts and tools for installation included

The drain tube on the front of the unit

Main switch button on the front of the unit

led lights on the front of the unit, to indicate that heating element is switching on

Suitable for bench and wall mounting

Low water cut-off to protect heating element

Overheating cut-off

Led light alarm

low-gas, bacteria and pyrogen free

power cable with German shock-proof type (Schuko) plug

Cooling water inlet on the right-hand side of the unitWater inlet diameter 3/4 inch (Ø 19.05 mm),

From 2 bar to max 10 bar

Cooling water outlet on the right-hand side of the unitWater outlet diameter 2/5 inch (inner Ø 10 mm)

Distillate withdrawal through drain tap on the front of the unit

Main connection cable on the left-hand side of the unit

230 V / 50…60 Hz

3000 watt

8419 / 4090

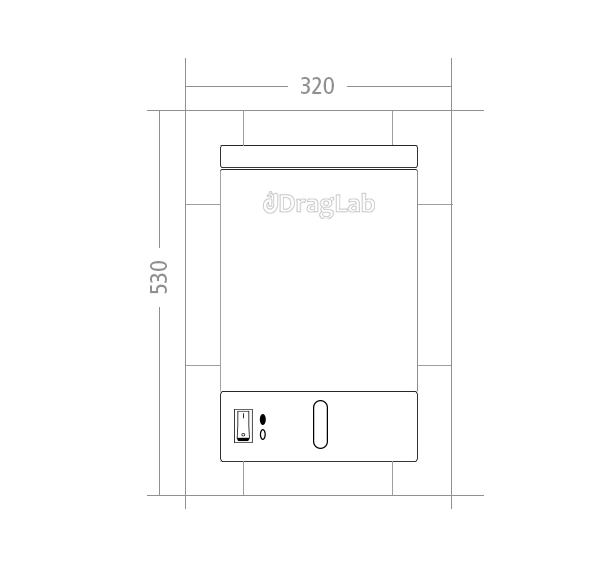

53 X 47 X 68 CM

10 Kg

15 Kg
